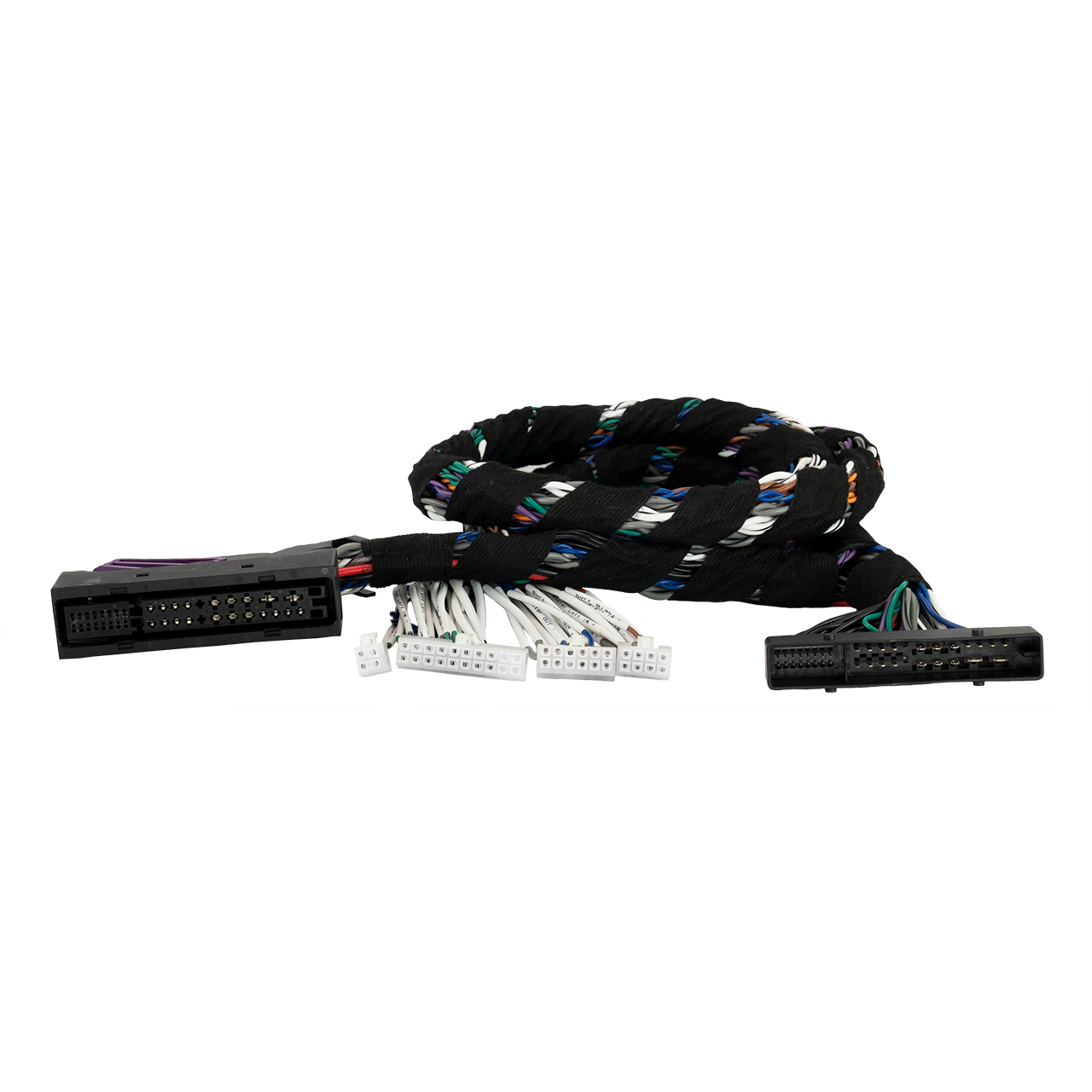

MATCH PP-MB 1.9MBUX-BUR Upgrade Cable MBUX – Adaptors & Harnesses

MATCH PP-MB 1.9MBUX-BUR Upgrade Cable MBUX - Adaptors & Harnesses
MATCH PP-MB 1.9MBUX-BUR Upgrade Cable MBUX - Adaptors & Harnesses - Image 2

MATCH PP-MB 1.9MBUX-BUR Upgrade Cable MBUX – Adaptors & Harnesses

R3,334.07

SKU: M141309 Category:

Description

The 9-channel UPGRADE cable harness PP-MB 1.9MBUX-BUR enables an easy connection of a MATCH UP 10DSP amplifier with integrated Extension Card MEC ANALOG IN to selected Mercedes vehicles with Burmester sound system and MBUX Radio (Mercedes-Benz User Experience).

Features

  • Plug & Play connectors for an easy connection of a MATCH UP 10DSP amplifier with integrated MEC ANALOG IN module
  • MBUX-connection for connecting Mercedes radios with Mercedes-Benz User Experience (MBUX)
  • Cable length 1.00 meter

Technical

Cable length  1.00 Meter
Connections  1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 10DSP

1 x 8-pole MOLEX plug for the connection of the highlevel inputs E – H of the UP 10DSP

1 x 12-pole MOLEX plug for the connection of speaker outputs E – J of the UP 10DSP

1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module

1 x 38-pole Mercedes system jack

1 x 38-pole Mercedes system plug

Compatibility

  • For connection of the MATCH UP 10DSP with ANALOG IN Extension Card
  • Suitable for Mercedes vehicles with Mercedes-Benz User Experience (MBUX)
  • Compatible with factory installed Burmester sound systems with MBUX radio
